NTG-350
Ren Thang Machine
NTG-350
Pre-scored PCB Depaneling Machine - Chopper type (incl. NTG-350L)
PC板V槽分板機 - 閘刀式分板機 (含 NTG-350L)
The NTG-350 is a rotary dual-disc V-cut PCB separator utilizing synchronized upper and lower circular tungsten carbide blades for unlimited board length processing. Delivering burr-free cuts and effortless blade clearance adjustment, it provides fast, stress-free depaneling for high-volume FR4 circuit boards.
Processing & Feature Tags
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 氣動腳踏控制一次切斷 (約 1 秒一片)
Power / Air Supply 使用氣壓: 5 kg/cm²
Standard Tolerance 板厚 0.3 ~ 3.0 mm；刀長 350 / 400 mm
Dimensions (L×W×H) 720(L) × 500(W) × 1070(H) mm
Net Weight 190 kg (NTG-350L: 195 kg)

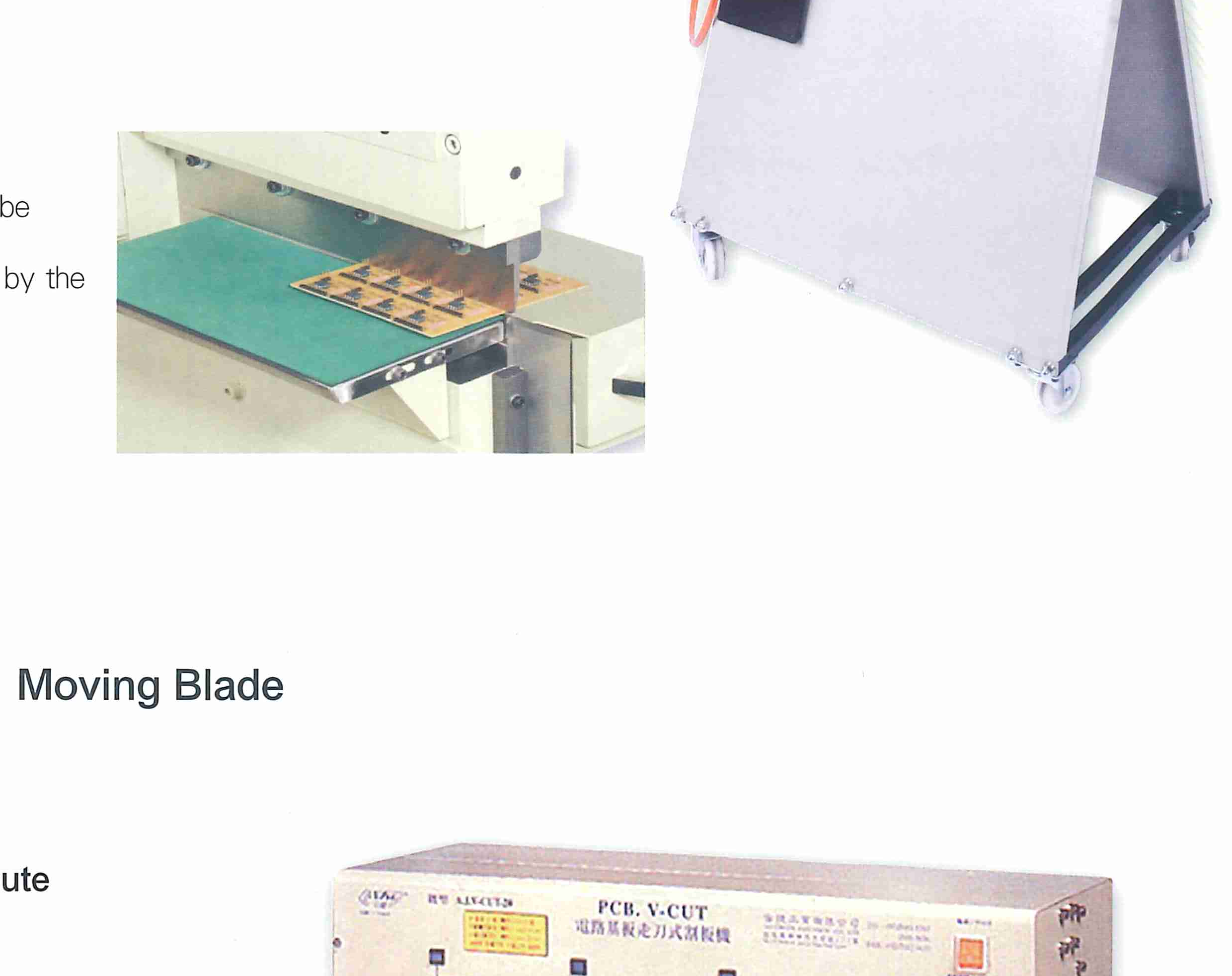

Catalog Page & Status

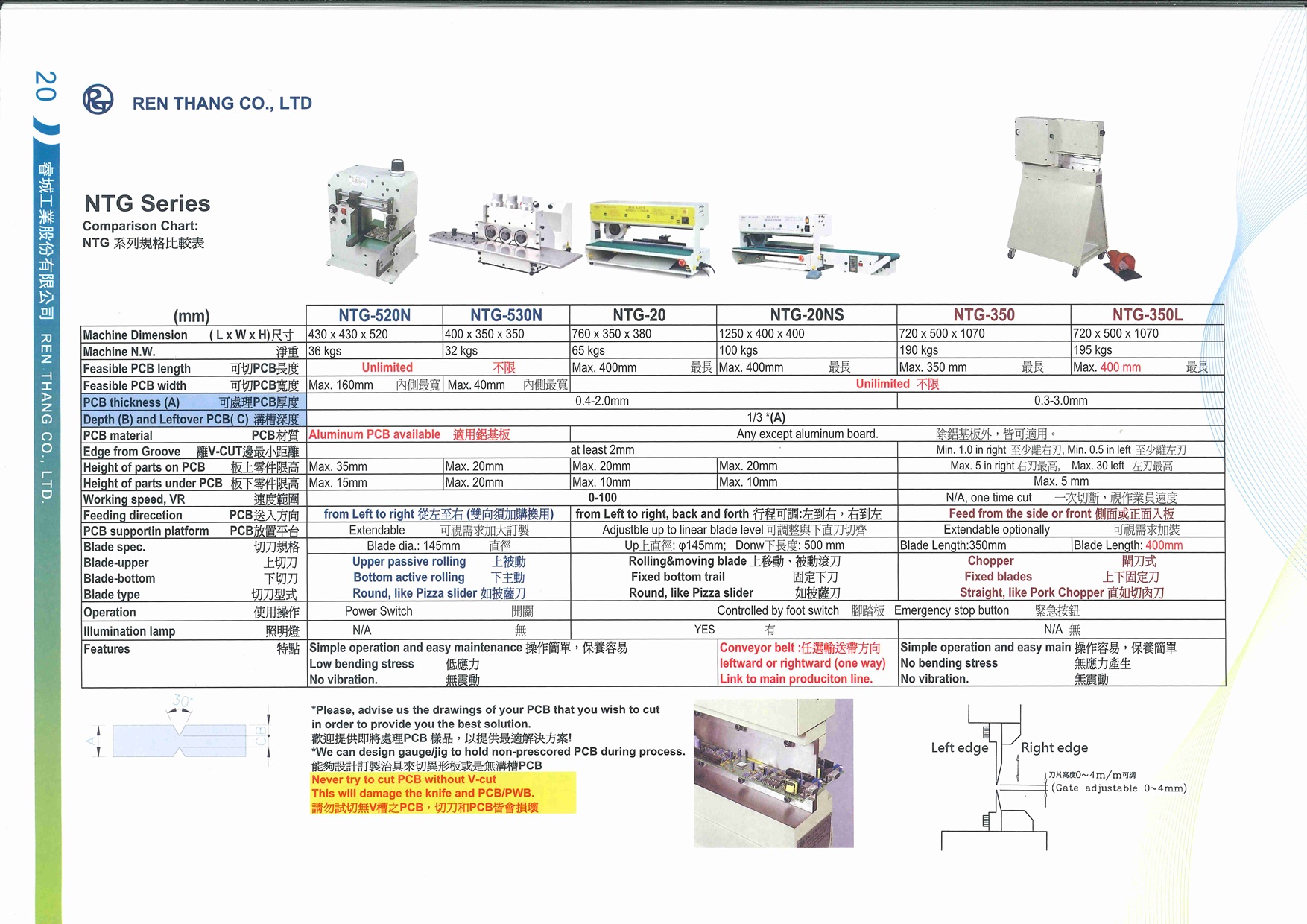

P.19, P.20 (Catalog_0019, Catalog_0020) • 在產 (Active)
【Key Machine Features & Advantages】
- Pneumatic chopper-type pre-scored PCB depaneling machine (including NTG-350L), engineered with a bending stress-free design for high-precision panel separation.
- Driven entirely by compressed air (5 kg/cm²), operating silently with zero vibration or mechanical shock during the cutting stroke.
- Superior component safety clearances: asymmetrical component clearance on the top side (5 mm on right edge, 30 mm on left edge) and 5 mm underneath; minimum distance from V-groove is 1.0 mm (right) and 0.5 mm (left).
- Precision gate height adjustment: features a 0 ~ 4 mm fine-tuning gate knob to prevent board chattering and accurately control stroke entry.
- Safely separates delicate boards with sensitive SMD parts, capacitors, and ultra-thin PCBs down to 0.3 mm in a single swift cut.
- Flexible feeding options: supports feeding boards from either the side or the front; controlled via foot pedal switch with an integrated emergency stop button.
- Available in two models: standard NTG-350 (knife length 350 mm, 190 kg) and extended NTG-350L (knife length 400 mm, 195 kg), handling PCB thicknesses from 0.3 to 3.0 mm with unlimited board width.
【Revision Notes】 刀門 0~4mm 可調。板厚 0.3~3.0mm；長度 350mm (NTG-350) / 400mm (NTG-350L)；寬度無限。零件限高：板上右5mm左30mm / 板下5mm。除鋁板外皆適用。
Lead Forming & Geometric Parameter Specifications
Unit: mm / Custom tooling available Dimension & Bending Schematic NTG-350
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| PCB_THICK | PCB Thickness (A) | 0.3 ~ 3.0 mm (超薄 0.3mm 至厚板皆適用) | Wide plate thickness compatibility range |
| PCB_LEN | Feasible PCB Length | 最長 350 mm (NTG-350) / 最長 400 mm (NTG-350L) | Standard and extended blade options |
| PCB_WIDTH | Feasible PCB Width | 無限制 (Unlimited) | Transparent and unobstructed front and back |
| V_DEPTH_RATIO | Groove Depth & Leftover | 深度 B 與殘厚 C 各約 1/3 × A (30° V-Cut) | Standard 30-degree V-groove ratio |
| PCB_MATERIAL | Applicable PCB Material | 除鋁基板外，FR4、CEM 等各類電子連板皆適用 | Widely adaptable except for aluminum substrates |
| EDGE_DIST | Edge from Groove Minimum | 右刃至少 1.0 mm (Min. 1.0 in right)；左刃至少 0.5 mm (Min. 0.5 in left) | High-precision cutter blade edge positioning |
| PARTS_H_TOP | Height of Parts on PCB | 右刃最高 5 mm (Max. 5mm)；左刃最高 30 mm (Max. 30mm) | Left and right asymmetric elastic air avoidance height difference |
| PARTS_H_BOT | Height of Parts under PCB | 最大 5 mm (Max. 5mm) | Safety height limit for bottom parts of the plate |
| GATE_ADJ | Gate Adjustable Height | 刀片高度 0 ~ 4 mm 精密可調 (Gate adjustable 0~4mm) | The fine-tuning knob prevents the board from shaking up and down |
| AIR_DRIVE | Compressed Air Supply | 5 kg/cm² (壓縮空氣，純氣動驅動無震動) | Air pressure is stable and quiet during punching |
| FEED_DIR | Feeding Direction | 側面或正面入板 (Feed from the side or front) | Two-way material feeding is elastic and free |
| BLADE_SPEC | Blade Specification & Type | 閘刀式上下固定直刀 (直如切肉刀 Straight Chopper) | Vertical and smooth punching without bending stress |
| OPERATION | Operation Method | 腳踏開關控制 + 緊急停止按鈕 (Emergency Stop Button) | Complete safety protection mechanism |
| PLATFORM_OPT | PCB Supporting Platform | 可視需求加裝延伸平台 (Extendable optionally) | Large board supporting auxiliary platform |
| ILLUMINATION | Illumination Lamp | 無 (N/A) | Standard natural lighting |
