NTG-20
Ren Thang Machine
NTG-20
V-CUT/Pre-scored PCB Depaneling Machine - Moving Blade
V-CUT走刀式分板機
The NTG-20 is a motorized linear-blade V-cut PCB depaneling machine featuring a stationary lower flat blade and an electric traversing circular upper blade. Keeping the PCB stationary during cutting minimizes internal tensile stress to prevent micro-cracks in sensitive SMD components (cut length up to 400 mm).
Processing & Feature Tags
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 刀輪速度 500 mm/秒 (VR 調速 0~100)
Power / Air Supply 110V/60Hz ; 220V/50Hz
Standard Tolerance 板厚 0.4 ~ 2.0 mm (最厚 3.2mm)；行程 400~430 mm
Dimensions (L×W×H) 760(L) × 350(W) × 380(H) mm
Net Weight 45 ~ 65 kg (含工作燈與平台)
Catalog Page & Status
P.19, P.20 (Catalog_0019, Catalog_0020) • 在產 (Active)
【Key Machine Features & Advantages】
- Moving-blade pre-scored V-CUT PCB depaneling machine engineered with a zero-bending-stress philosophy for both short and long PCBs.
- Stationary PCB cutting method: the board remains perfectly flat and stationary while the upper ψ 145 mm round blade rolls across, eliminating drag stress and joint micro-fractures.
- Standard high-intensity work illumination lamp (YES included) significantly improves groove alignment accuracy and operational safety.
- Bi-directional adjustable stroke: maximum cutting stroke reaches up to 400 ~ 430 mm, supporting rapid back-and-forth passes (left-to-right and right-to-left).
- Powered by a high-efficiency D.C. brushless IPM motor with a front-panel VR potentiometer (0 ~ 100 scale), delivering blade speeds up to 500 mm/sec.
- Clearance and edge margins: permits components up to 20 mm on the top side and 10 mm underneath; requires a minimum 2 mm margin from component to V-groove edge.
- Heavy-duty tooling: upper moving round blade paired with a lower 500 mm rigid straight rail blade, both precision-calibrated and capable of multiple re-sharpenings.
- Supporting platform is vertically adjustable to align flush with the lower blade; custom clearance milling available for groove-crossing parts. (Note: Belt conveyor model NTG-20-NS is discontinued; standard NTG-20 is active).
【Revision Notes】 標配工作照明燈。板厚 0.4~2.0mm(最厚3.2mm)；行程 400~430mm；寬度無限。零件限高：板上 20mm / 板下 10mm；離槽距離 ≥2mm。除鋁板外皆適用。
Lead Forming & Geometric Parameter Specifications

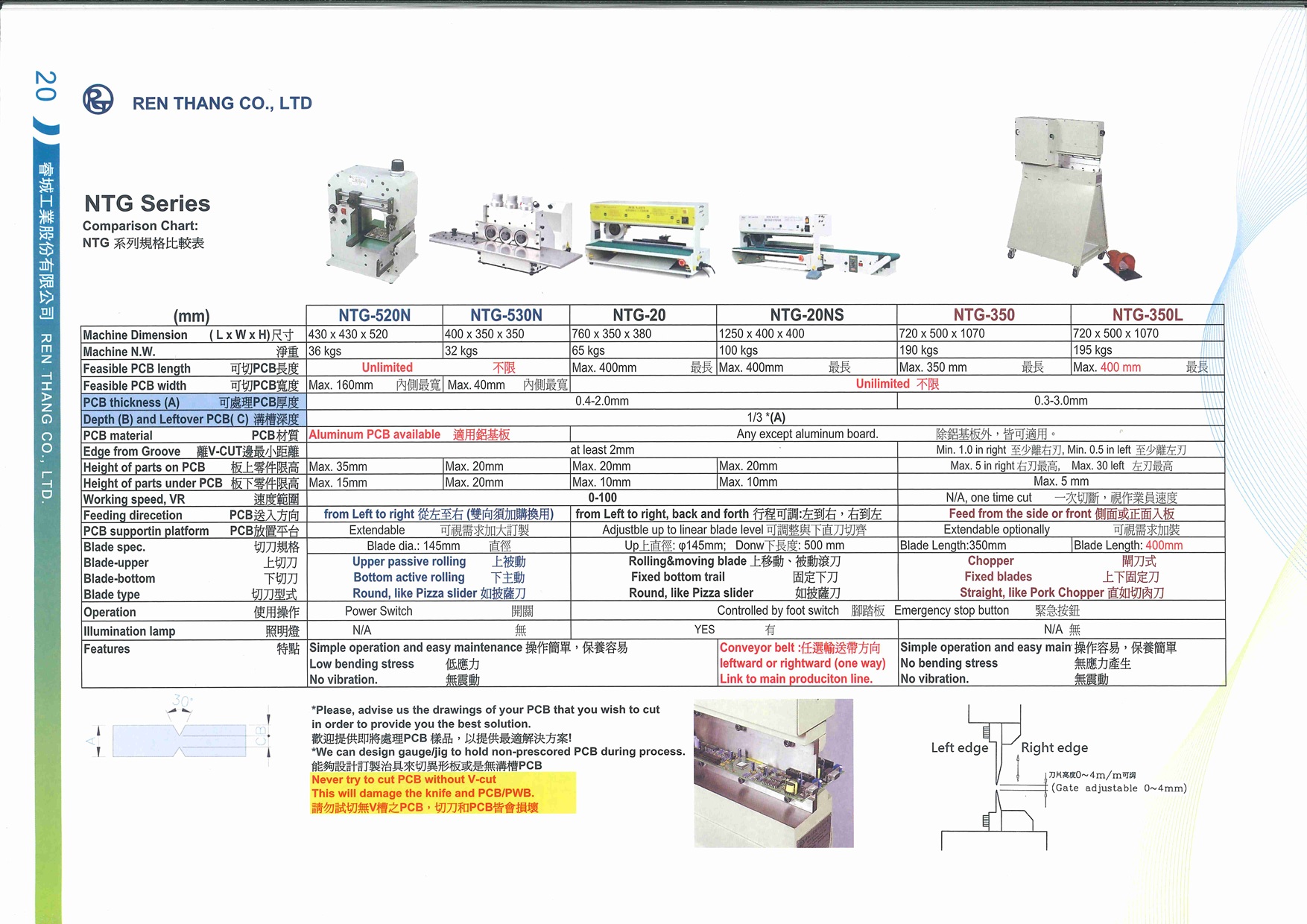

Unit: mm / Custom tooling available Dimension & Bending Schematic NTG-20
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| PCB_THICK | PCB Thickness (A) | 0.4 ~ 2.0 mm (最厚可達 3.2 mm) | Rigid guide rails for stable cutting |
| PCB_LEN | Feasible PCB Length | 最長 400 mm ~ 430 mm (單次切削行程) | Rapid cutting of connecting boards |
| PCB_WIDTH | Feasible PCB Width | 無限制 (Unlimited) | Transparent on both sides |
| V_DEPTH_RATIO | Groove Depth & Leftover | 深度 B 與殘厚 C 各約 1/3 × A (30° V-Cut) | Standard 30-degree V-groove ratio |
| PCB_MATERIAL | Applicable PCB Material | 除鋁基板外，FR4、玻纖板等皆適用 | Widely adaptable except for aluminum substrates |
| EDGE_DIST | Edge from Groove Minimum | 至少 2 mm (At least 2mm) | Prevent damage to circuits or pads |
| PARTS_H_TOP | Height of Parts on PCB | 最大 20 mm (Max. 20mm) | Standard SMD and plug-in components are safely avoided |
| PARTS_H_BOT | Height of Parts under PCB | 最大 10 mm (Max. 10mm) | Smooth and anti-collision on the bottom of the board |
| SPEED_VR | Working Speed VR | VR 調速旋鈕刻度 0 ~ 100 (刀輪速度達 500 mm/秒) | D.C. brushless IPM motor with smooth speed regulation |
| FEED_DIR | Feeding Direction | 行程可調：左到右、右到左往復雙向 (Left to Right, Back & Forth) | High efficiency in reciprocating cutting |
| BLADE_SPEC | Blade Specification & Type | 上移動被動滾刀 (ψ145mm) + 下固定直刀 (500mm，如披薩刀) | The upper hob moves across the cutting substrate and lays it still and flat |
| OPERATION | Operation Method | 腳踏開關控制 (Controlled by Foot Switch) | Hands in the air to support the board |
| ILLUMINATION | Illumination Lamp | 標配高亮度工作照明燈 (YES 有) | Accurate cutter blade setting and sufficient lighting |
| PLATFORM_ADJ | PCB Supporting Platform | 可調整高度與下直刀切齊 (Adjustable up to linear blade level) | Flat support to prevent falling and bending |
