RT-90
Ren Thang Machine
RT-90

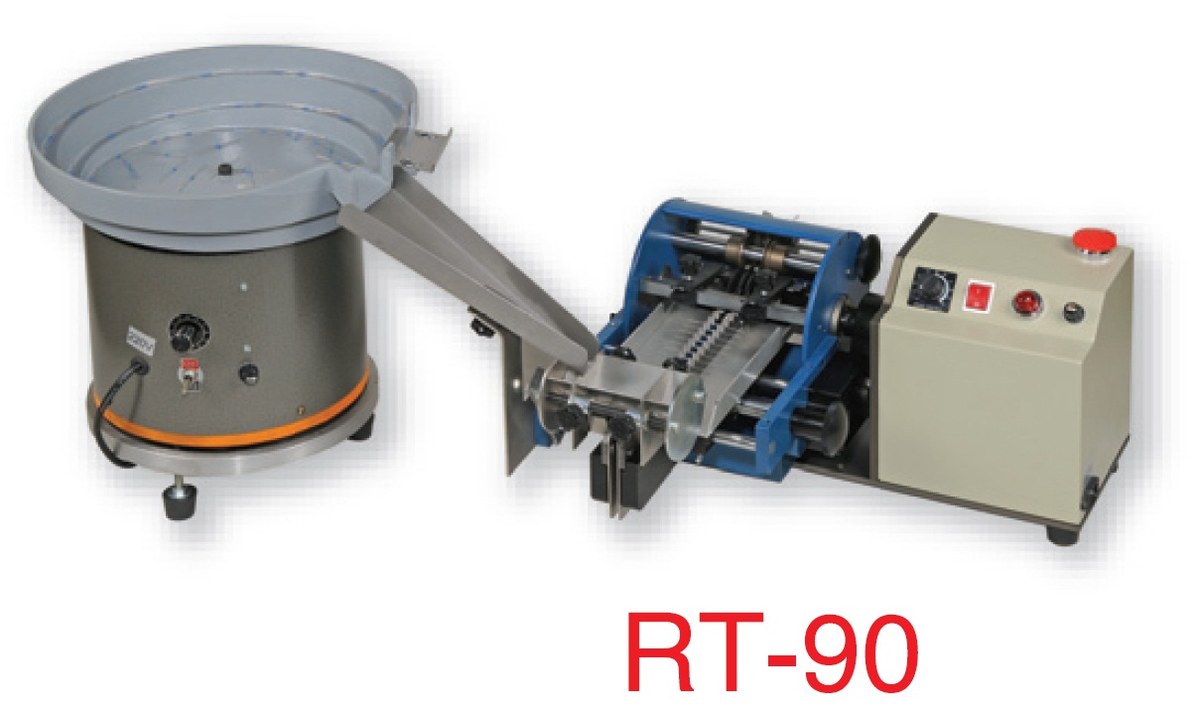

Motorized Taped and Loose Axial Lead Bender with Bowl Feeder
全自動震動盤電阻成型機
The RT-90 is the flagship automated axial lead forming machine, integrating a VP-87 vibratory bowl feeder for continuous automated loose part processing (9,000 pcs/hr) and taped operation (43,000 pcs/hr). Its heavy-duty 60 kg frame ensures whisper-quiet, zero-stress forming for demanding production floors.
Processing & Feature Tags
Odd Packaging
BDU
LSE
BOWL
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 帶裝 43,000 pcs/小時；散裝 9,000 pcs/小時 (Taped 43,000 pcs/Hour; Loose 9,000 pcs/Hour)
Power / Air Supply 110V/60Hz ; 220V/50Hz
Standard Tolerance ±0.3mm
Dimensions (L×W×H) 600(L) x 590(W) x 440(H) mm
Net Weight 60 kgs
Catalog Page & Status
P.8 (Catalog_0008) • 在產 (Active)
【Key Machine Features & Advantages】
- Flagship automated axial lead bending machine equipped with VP-87 vibratory bowl feeder for continuous automated loose part feeding.
- Dual-mode extreme productivity: loose feeding up to 9,000 pcs/hour; taped feeding up to 43,000 pcs/hour.
- Vibratory bowl feeder with adjustable motor speed ensures smooth, jam-free loose component feeding.
- Independent rotary disc cutters with rigid tooling ensure zero axial stress, preventing damage to leads and component bodies.
- Fully adjustable parameters: lead pitch (P) 6~40 mm, lead length (B) 3.5~15 mm, body diameter (D) 1.5~8 mm.
- Available variants: Standard (RT-90), Slim lead (RT-90S), Heavy-duty wire (RT-90W, Ø0.8~Ø1.2 mm), and Linear cut-only (RT-90L).
- Heavy-duty 60 kg construction engineered for stable, quiet, and reliable continuous industrial operation.
【Revision Notes】 配備 VP-87 震動送料盤，全自動散裝高產能；支援標準型 (RT-90)、窄腳距 (RT-90S)、粗線徑 (RT-90W)、切直線 (RT-90L)。
Lead Forming & Geometric Parameter Specifications
Unit: mm / Custom tooling available Dimension & Bending Schematic RT-90
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| A | Body Length (A) | 3.5 ~ 37.6 mm | Applicable to standard, enhanced, and tangent types |
| B | Lead Length (B) | 3.5 ~ 15 mm | Standard, dedicated, and enhanced (specify when ordering B=2mm) |
| C | Shoulder (C) | > 1.2 mm (標準型) / > 0.6 mm (RT-8XS 專用型) | The dedicated model supports small shoulder width and narrow lead spacing |
| W | Wire Diameter (W) | Ø0.35 ~ Ø0.8 mm (標準型) / Ø0.35 ~ Ø1.2 mm (RT-8XW 加強型) | The enhanced model supports thick wire diameters |
| D | Body Diameter (D) | 1.5 ~ 8 mm | Applicable to various specifications of resistors/diodes such as 1/8W ~ 3W |
| P | Pitch (P) | 6 ~ 40 mm (標準型) / 5 ~ 40 mm (RT-8XS 專用型) | Horizontal U-shaped bend span |
| L | Linear Cut Length (L) | 3.5 ~ 37.6 mm (RT-8XL 切直線型) | Purely cut leads without bending, shoulder width C > 5mm |
