RT-80
Ren Thang Machine
The RT-80 is a manual hand-crank horizontal axial lead former delivering high-volume output up to 50,000 pcs/hour without electrical power. Built with precision tooling and rotary disc shears that impart zero axial tension, it upgrades seamlessly to the motorized RT-82 via the optional MT-1 module.
Processing & Feature Tags
BDU
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 50,000 pcs/小時 (手搖帶裝) / Taped 50,000 pcs/Hour
Power / Air Supply 手搖 (Manual Crank)；可選配 MT-1 馬達升級為電動 RT-82
Standard Tolerance ±0.3mm
Dimensions (L×W×H) 380(L) x 180(W) x 210(H) mm
Net Weight 8 kgs
Catalog Page & Status
P.8 (Catalog_0008) • 在產 (Active)
【Key Machine Features & Advantages】
- Driven manually by hand crank; simple operation and low maintenance with no special tooling required for fast changeover.
- Compact and lightweight benchtop design, manual processing capacity up to 50,000 pcs/hour.
- Heavy-duty construction paired with independent rotary disc cutters for significantly longer cutting life.
- Precision forming mechanics will not score or damage component bodies or leads, imparting zero mechanical stress or axial tension.
- Fully adjustable parameters: lead pitch (P) 6~40 mm, lead length (B) 3.5~15 mm, lead diameter (W) Ø0.35~Ø0.8 mm.
- Comprehensive model variants: Standard (RT-80), Slim lead for smaller parts (RT-80S, P=5~40mm, C>0.6mm), and Linear cut-only (RT-80L).
- Modular upgrade capability: can be easily upgraded to motorized RT-82 anytime by adding the optional MT-1 motorized drive unit.
【Revision Notes】 含標準型 (RT-80)、窄腳距型 (RT-80S，C>0.6mm)、切直線型 (RT-80L)；加裝 MT-1 馬達即可升級為 RT-82。
Lead Forming & Geometric Parameter Specifications

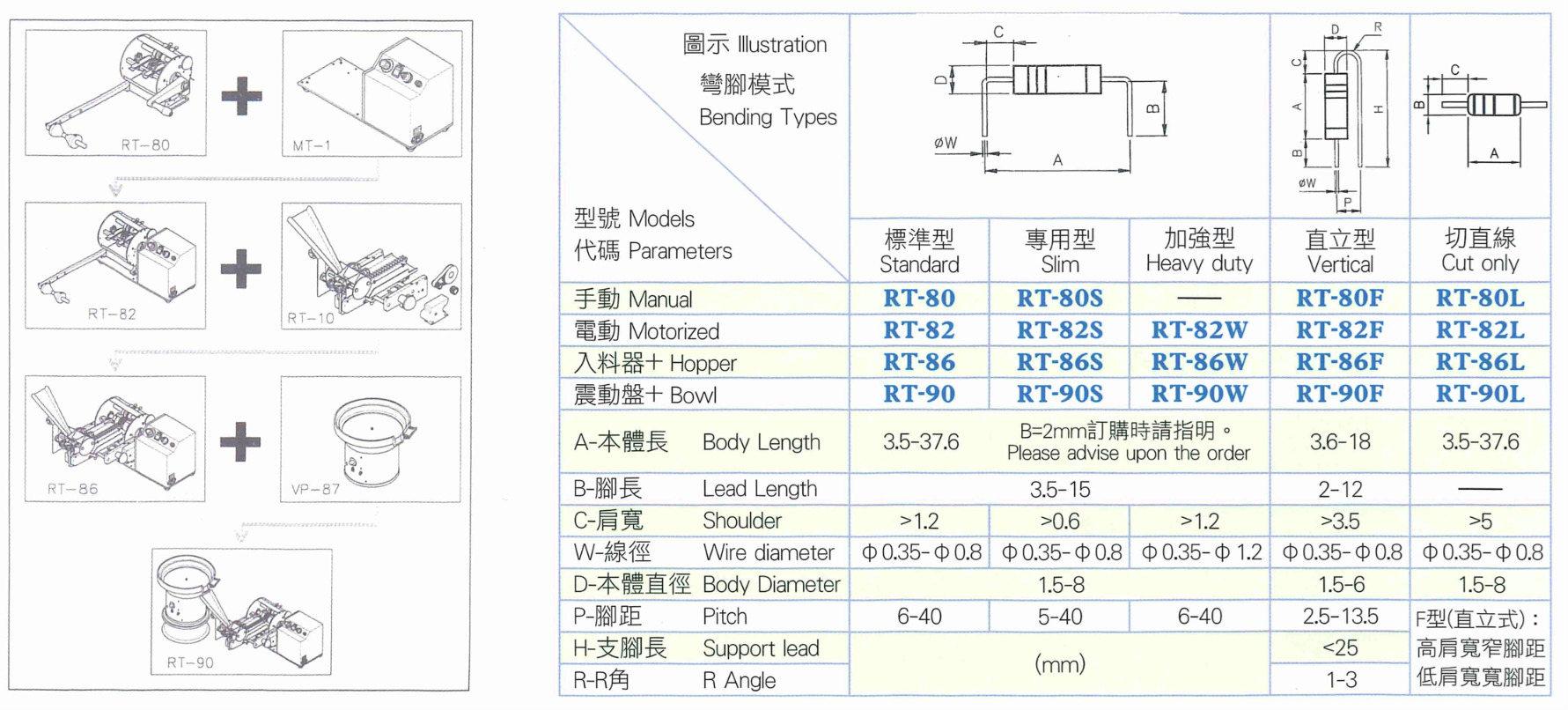

Unit: mm / Custom tooling available Dimension & Bending Schematic RT-80
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| A | Body Length (A) | 3.5 ~ 37.6 mm | Applicable to standard, enhanced, and tangent types |
| B | Lead Length (B) | 3.5 ~ 15 mm | Standard, dedicated, and enhanced (specify when ordering B=2mm) |
| C | Shoulder (C) | > 1.2 mm (標準型) / > 0.6 mm (RT-8XS 專用型) | The dedicated model supports small shoulder width and narrow lead spacing |
| W | Wire Diameter (W) | Ø0.35 ~ Ø0.8 mm (標準型) / Ø0.35 ~ Ø1.2 mm (RT-8XW 加強型) | The enhanced model supports thick wire diameters |
| D | Body Diameter (D) | 1.5 ~ 8 mm | Applicable to various specifications of resistors/diodes such as 1/8W ~ 3W |
| P | Pitch (P) | 6 ~ 40 mm (標準型) / 5 ~ 40 mm (RT-8XS 專用型) | Horizontal U-shaped bend span |
| L | Linear Cut Length (L) | 3.5 ~ 37.6 mm (RT-8XL 切直線型) | Purely cut leads without bending, shoulder width C > 5mm |
TECHNICAL DOCUMENTATION
View All Technical Documents →
Technical Documents & User Manuals
Digital manuals for this machine are being archived. Please email engineering for direct documentation. Request Manual →
