RFT-201U

Motorized Taped Axial Lead Forming Machine (U/F/S/W/L Series)

電動帶式電阻成型機 (含 U型/F型/S型/W加強型/L切直線)

The RFT-201U is a high-speed motorized axial lead forming machine delivering extreme throughput up to 84,000 pcs/hour for horizontal U-bend insertion lines. Featuring rock-solid industrial gearing and effortless adjustment, it offers dedicated configurations for vertical (F), slim (S), and heavy-duty (W) forming.

Processing & Feature Tags

Taped Axial

Straight Cutting

M-Shape, 90 Degree Bend

Taped - Axial

AC Motor

ENGINEERING SPECIFICATIONS

Machine Specifications & Performance

Processing Capacity 最高 84,000 pcs/Hour (標準型最高速)

Power / Air Supply 電壓: 110V/50Hz ; 220V/60Hz (電動馬達型)

Standard Tolerance ±0.3mm

Dimensions (L×W×H) 520(L) x 380(W) x 300(H) mm

Net Weight 淨重: 24 kgs

Catalog Page & Status

P.6 (Catalog_0006) • 電動高速款：包含 RFT-201U (84,000 pcs/H)、立式 RFT-201F、專用型 201S、加強型 201W (線徑Φ1.3)、切直線 201L。

【Key Machine Features & Advantages】

High-Speed Motorized Forming: High-torque electric drive achieves blistering production speeds up to 84,000 pcs/hour.
Automated Assembly Ready: Straightforward parameter tuning and compact footprint ideal for high-throughput DIP insertion lines.
Heavy-Duty Reliability: Robust industrial gears and hardened rotary cutters deliver minimal wear and outstanding ROI.
Superior Shearing & Bending Power: Handles axial resistors, diodes, and inductors with flawless dimensional consistency.
【Integrated Series Variant Overview】 (Unified platform with specialized forming modules):
• Standard RFT-201U: Horizontal U-bend, pitch A = 6~40 mm, wire dia. Ø0.35~Ø0.8 mm, max. 84,000 pcs/hr.
• Vertical Type RFT-201F: Upright stand-off forming, pitch A = 4~18 mm, lead pitch P = 2.5~13.5 mm, 40,000 pcs/hr.
• Slim Type RFT-201S: Dedicated narrow pitch, pitch A = 5~40 mm, min. shoulder C > 0.6 mm, 40,000 pcs/hr.
• Heavy-Duty RFT-201W: Upgraded heavy-duty motor and reinforced cutters, wire dia. Ø0.35~Ø1.3 mm, 40,000 pcs/hr.
• Cut-Only RFT-201L: Straight pin trimming without bending, after-cut lead length A = 3.5~37.6 mm, 40,000 pcs/hr.
Optional E63 Pitch Gauge: Rapid calibration gauge for PCB hole pitch measurement; custom tooling made to customer drawings.

【Revision Notes】標準型加工量高達 84,000 pcs/H；可選購 E63 孔距量具；對照全系列規格對照表。

Lead Forming & Geometric Parameter Specifications

Unit: mm / Custom tooling available

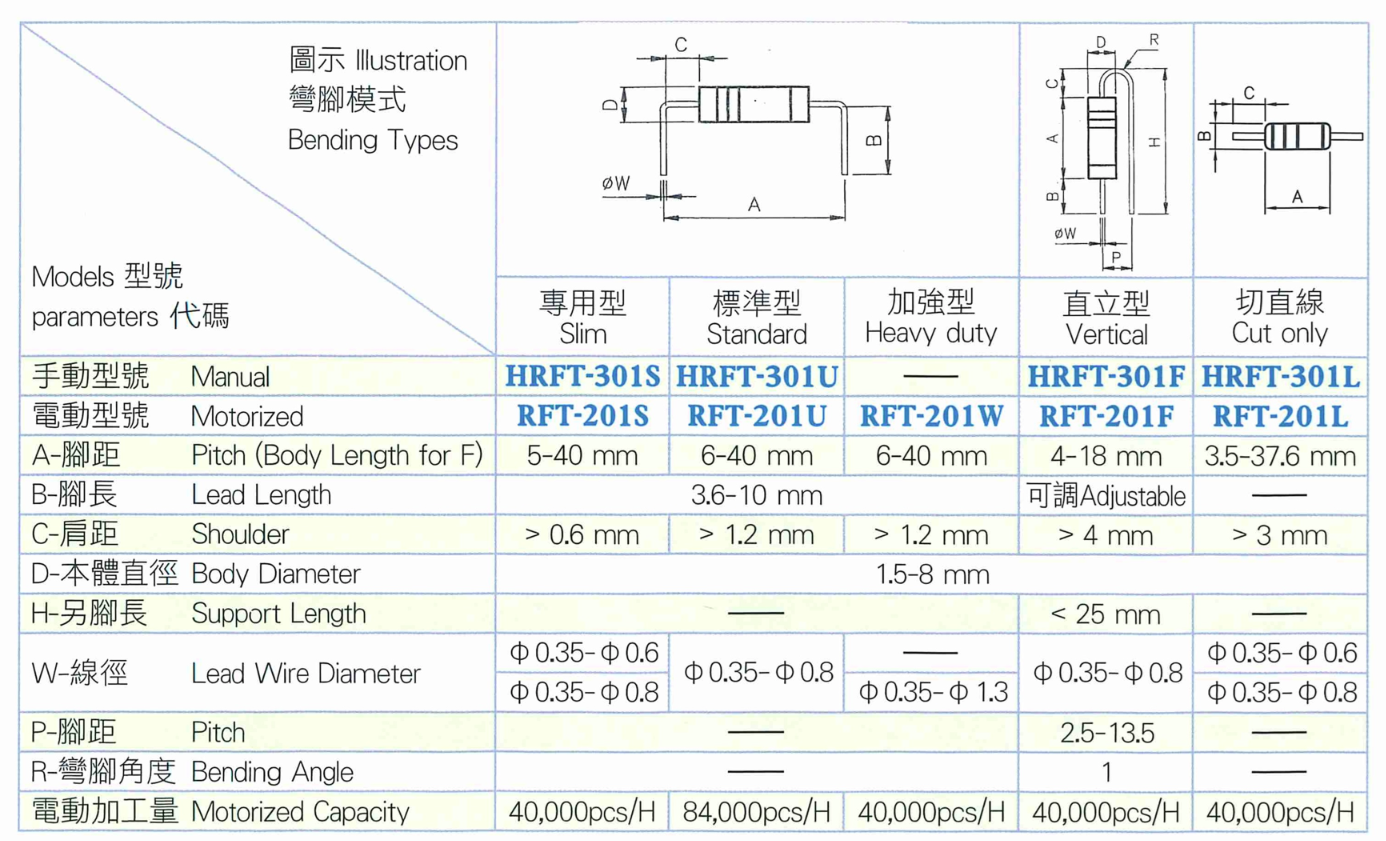

Dimension & Bending Schematic RFT-201U

Callouts match specifications in the table (Click image to enlarge)

Code	Parameter	Standard Value / Range	Engineering Notes
A	Standard Pitch (A)	6 ~ 40 mm (產能高達 84,000 pcs/H)	Highest speed for standard horizontal molding
B	Slim Pitch (A)	5 ~ 40 mm (肩距 C ＞ 0.6mm)	Suitable for narrow hole spacing resistors, production capacity 40,000 pcs/H
C	Heavy Duty Wire (W)	Φ0.35 ~ Φ1.3 mm (本體直徑 1.5-8mm)	Enhanced motors and tools, specialized in processing thick wire diameters
W	Vertical Type (201F)	腳距 A=4-18mm, P=2.5-13.5mm, 產能 40,000 pcs/H	Included in this series of electric vertical molding solutions
L	Cut-only Type (201L)	切斷長度 3.5 ~ 37.6 mm, 產能 40,000 pcs/H	Simple belt assembly and cutting in straight lines without bending

SERIES COMPARISON MATRIX • Catalog P.06 Reference

RF / HRFT Series Axial Lead Bending & Forming Capabilities Matrix

Comprehensive dimension limits and capacity comparison across Slim, Standard, Heavy Duty, Vertical, and Cut Only models

U_BEND

Horizontal U-Bend

V_BEND

Vertical Stand-off

CUT_ONLY

Straight Cut Only

Parameters / Models	Slim Manual: HRFT-301S Motorized: RFT-201S	★ Current Standard Manual: HRFT-301U Motorized: RFT-201U	Heavy Duty Manual: — Motorized: RFT-201W	Vertical Manual: HRFT-301F Motorized: RFT-201F	Cut Only Manual: HRFT-301L Motorized: RFT-201L
A Pitch (Body Length for F)	5 ~ 40 mm	6 ~ 40 mm	6 ~ 40 mm	4 ~ 18 mm	3.5 ~ 37.6 mm
B Lead Length	3.6 ~ 10 mm	3.6 ~ 10 mm	3.6 ~ 10 mm	可調 Adjustable	—
C Shoulder	> 0.6 mm	> 1.2 mm	> 1.2 mm	> 4 mm	> 3 mm
D Body Diameter	Ø1.5 ~ Ø8 mm	Ø1.5 ~ Ø8 mm	Ø1.5 ~ Ø8 mm	Ø1.5 ~ Ø8 mm	Ø1.5 ~ Ø8 mm
H Support Length	—	—	—	< 25 mm	—
W Lead Wire Diameter	Φ0.35~0.6 / Φ0.35~0.8 mm	Φ0.35 ~ 0.8 mm	Φ0.35 ~ 1.3 mm (粗線徑)	Φ0.35 ~ 0.8 mm	Φ0.35~0.6 / Φ0.35~0.8 mm
P Pitch	—	—	—	2.5 ~ 13.5 mm	—
R Bending Angle	—	—	—	1° (直立折彎)	—
CAP Motorized Capacity	40,000 pcs/H	84,000 pcs/H (超高速)	40,000 pcs/H	40,000 pcs/H	40,000 pcs/H
