RT-70
Ren Thang Machine
The RT-70 utilizes a quiet motorized drive integrated with precision circular shearing blades to deliver automated axial lead trimming up to 25,000 pcs/hour. Engineered for zero mechanical pull stress, it provides 2–10 mm adjustable trim lengths and full support for 12.7 mm and 15.0 mm taped resistors.
Processing & Feature Tags
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 25,000 pcs/小時 / 25,000 pcs/Hour
Power / Air Supply 110V/60Hz ; 220V/50Hz
Standard Tolerance ±0.3mm
Dimensions (L×W×H) 520(L) x 380(W) x 300(H) mm
Net Weight 16 kgs
Catalog Page & Status
P.7 (Catalog_0007) • 在產 (Active)
【Key Machine Features & Advantages】
- Motorized High-Speed Drive: Electric motor ensures continuous, quiet feeding and shearing with quick, tool-free setup.
- High Automated Throughput: Space-saving benchtop machine delivering automated continuous output up to 25,000 pcs/hour.
- Heavy-Duty Rotary Shear Tooling: Independent circular disc blades engineered for wear resistance and clean, burr-free cuts.
- Stress-Free Component Shearing: Eliminates axial pulling forces, protecting component lead solderability and hermetic seals.
- Wide Dimensional Adjustability: Trimmed lead length (L) adjustable from 2 to 10 mm; handles lead wire diameters Ø0.3 ~ Ø1.2 mm.
- Tape Pitch Configurations: Standard model RT-70 for 12.7 mm hole pitch; wide-pitch model RT-70S for 15.0 mm hole pitch.
- Modular Powertrain Architecture: Built upon the proven RT-79 chassis integrated with the MT-1 precision electric drive package.
【Revision Notes】 標準孔距 A=12.7mm (RT-70)，特殊孔距 A=15mm (RT-70S)；由 RT-79 加裝 MT-1 馬達組一體成型。
Lead Forming & Geometric Parameter Specifications

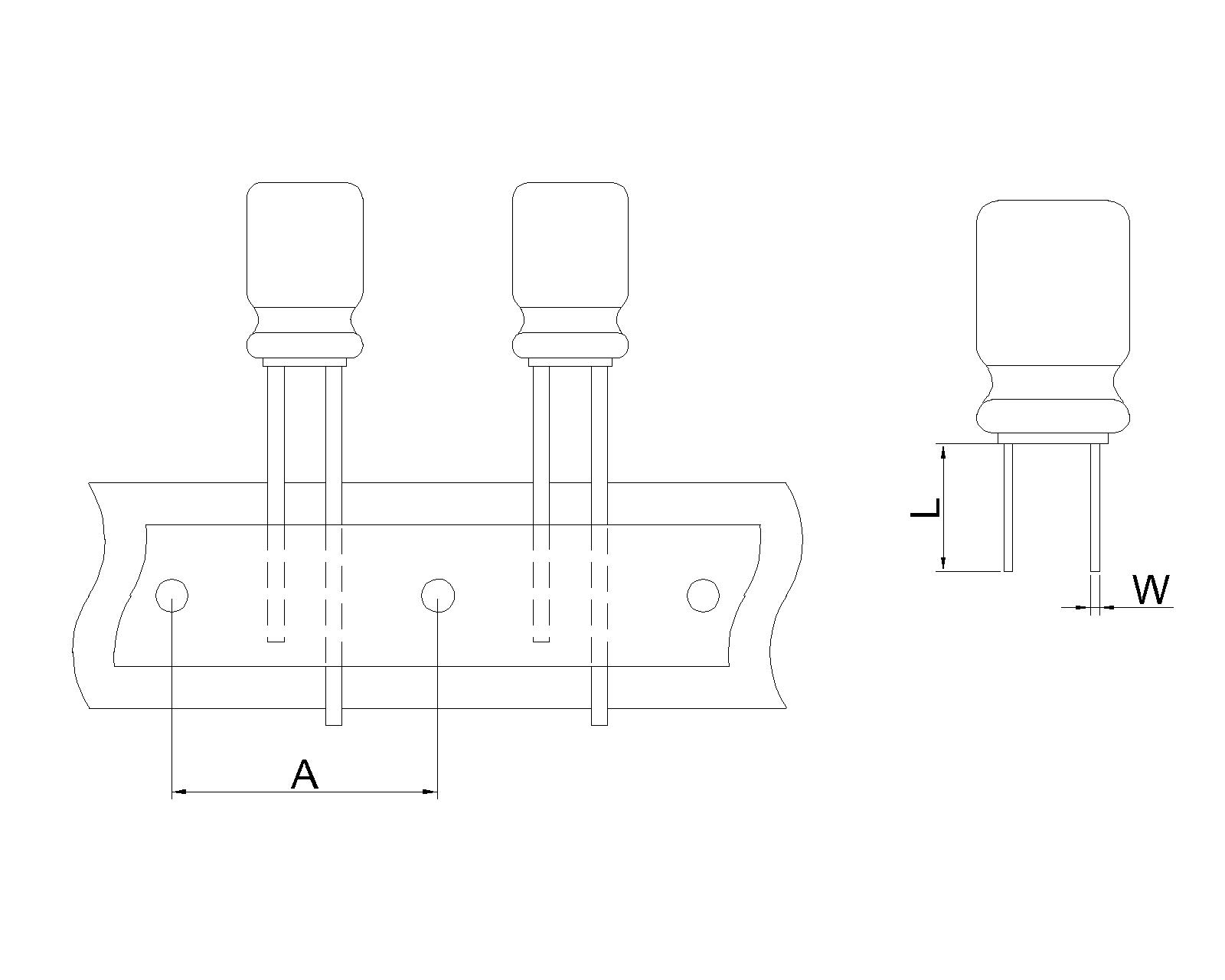

Unit: mm / Custom tooling available Dimension & Bending Schematic RT-70
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| A | Tape Hole Pitch (A) | 標準 A=12.7mm (RT-70) / 特殊 A=15mm (RT-70S) | Applicable to standard tape-mounted parts |
| W | Lead Wire Diameter (W) | Ø0.4 ~ Ø1.0 mm | Compatible lead wire diameter |
| L | Total Lead Length (L) | 3.0 ~ 20.0 mm | Total lead length from component base to lead tips |
TECHNICAL DOCUMENTATION
View All Technical Documents →
Technical Documents & User Manuals
Digital manuals for this machine are being archived. Please email engineering for direct documentation. Request Manual →
GENUINE CONSUMABLES
View All Spare Parts →
Recommended Genuine Consumables & Spare Parts
Genuine replacement blades, belts, and dies are kept in stock for this machine line. Browse Parts Catalog →
