CF-130
Ren Thang Machine
CF-130
Auto Taped Radial Lead Forming Machine (Two-Step Forming)
帶裝立式零件成型機 (兩步成型模具型)
The CF-130 features a sequential two-step forming die module and heavy-duty cutters engineered for complex radial lead geometries such as inward snap-in kinks, double kinks, and combined bend-with-kinks. Operating up to 7,200 pcs/hr, it accommodates standard 12.7 mm and wide 15.0 mm taped packages.
Processing & Feature Tags
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity Max. 7,200 pieces / Hour
Power / Air Supply 電壓: 110V/60Hz ; 220V/50Hz
Standard Tolerance ±0.3mm
Dimensions (L×W×H) 450(L) x 400(W) x 500(H) mm
Net Weight 淨重: 42 kgs
Catalog Page & Status
P.4 (Catalog_0004) • 配備一組兩步成型模具，適用複雜成型步驟；CF-130 (A=12.7mm) / CF-130S (A=15mm)。
【Key Machine Features & Advantages】
- Sequential Two-Step Forming Tooling: Equipped with a two-stage sequential forming die and cutter set for one dedicated forming specification (up to 7,200 pcs/hr).
- Complex Multi-Bend Capabilities: Engineered for intricate forming geometries including inward snap-in kinks, double kinks, and combined 90° bend-with-kinks.
- Standard Model CF-130: Designed for standard taped radial components with 12.7 mm tape sprocket hole pitch.
- Special Model CF-130S: Dedicated for wider taped radial components with 15.0 mm tape sprocket hole pitch.
【Revision Notes】 支援多種封裝規格之紙帶連續進料。
Lead Forming & Geometric Parameter Specifications

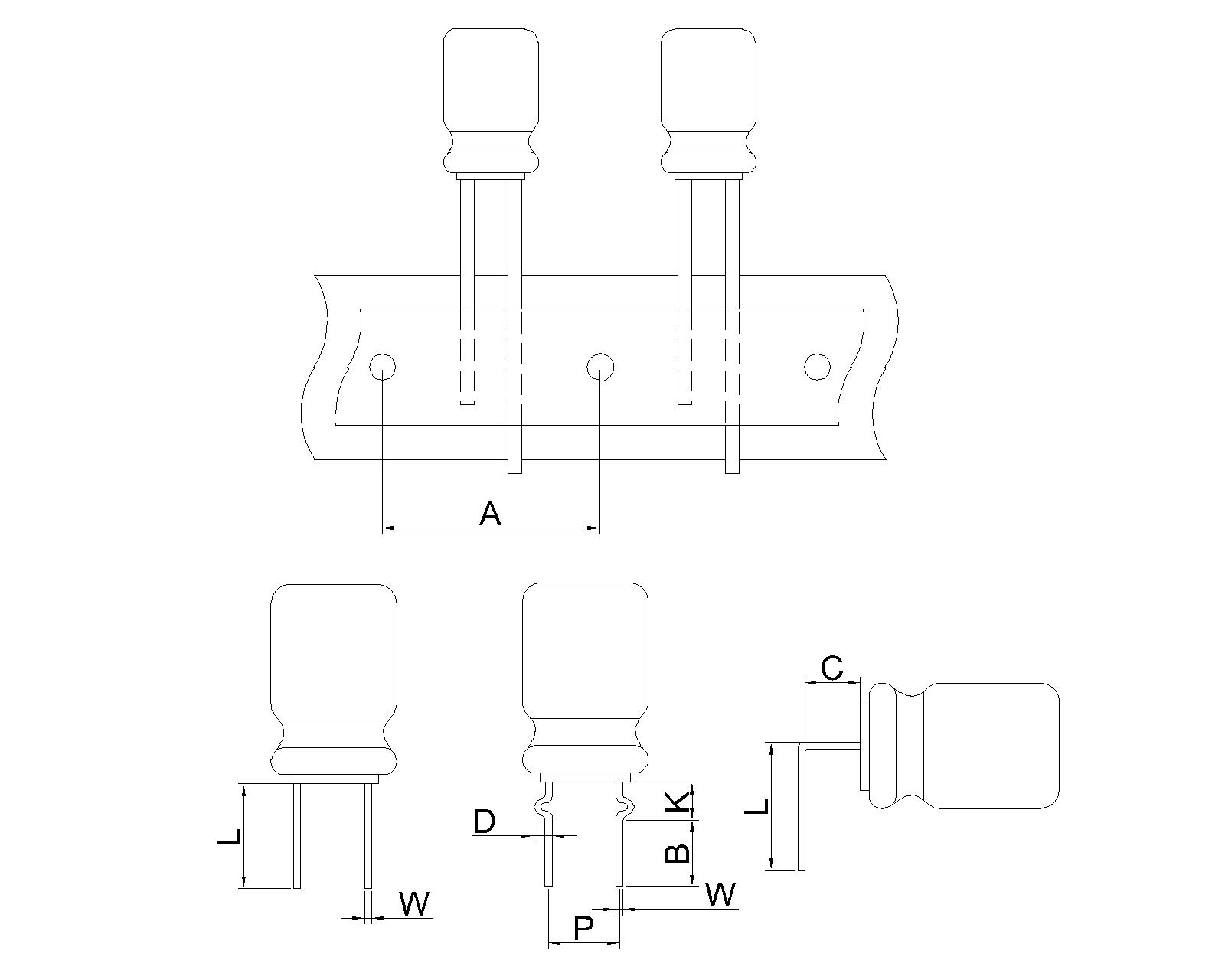

Unit: mm / Custom tooling available Dimension & Bending Schematic CF-130
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| A | Tape Hole Pitch (A) | 標準 A=12.7mm (CF-120) / 特殊 A=15mm (CF-120S) | Applicable to standard tape-mounted parts |
| K | Kink to Body Height (K) | >3mm | PCB to Body Height |
| B | Lead Length after Bend (B) | 可調 | Final length |
| W | Lead Wire Diameter (W) | Ø0.4 ~ Ø1.0 mm | Compatible lead wire diameter |
| P | Lead Pitch (P) | 標準 5.0 / 7.5 / 10.0 mm | lead pitch for insertion into PCB mounting holes |
| D | Kink Depth (D) | 常見2mm (Standard 2mm) | Custom tooling available for varying inward/outward kink depths |
| L | Total Lead Length (L) | 常見 10.0 ~ 25.0 mm | Total lead length from component base to lead tips |
| C | 90° Bending Height (H) | >2mm | Vertical height from component base to 90° bend point; fixed by tooling specification |
| L | Lead Length after Bend (L) | 可調 3.0 ~ 15.0 mm | horizontal lead length after 90° bend; determined by cutter tooling die |
