CF-366

Automatic Loose Radial Lead Cutter

自動散裝電容剪腳機

The CF-366 pairs a high-speed lead cutter with a custom vibratory bowl feeder to deliver automatic throughput up to 18,000 pcs/hour for loose radial capacitors, LEDs, and transistors. The detachable cutter unit can operate independently for manual feeding, providing extreme labor savings and production versatility.

Processing & Feature Tags

Loosed Radial

Loosed Transistor

Straight Cutting

Vibratory Feeder

AC Motor

ENGINEERING SPECIFICATIONS

Machine Specifications & Performance

Processing Capacity 18,000 pcs / Hour

Power / Air Supply 電壓: 110V/60Hz ; 220V/50Hz / 氣壓: 4 kgs/cm²

Standard Tolerance ±0.3mm

Dimensions (L×W×H) 1150(L) x 700(W) x 1050(H) mm

Net Weight 淨重: 145 kgs

Catalog Page & Status

P.3 (Catalog_0003) • 在產 (Active)

【Key Machine Features & Advantages】

Automated High-Speed Lead Trimming: High throughput up to 18,000 pcs/hr dramatically reduces labor costs in high-volume PCBA prep.
Single-Pass Processing Guideline: Pre-trimmed short leads cannot be re-fed via vibratory bowl due to stability limits; AR-110 is recommended for secondary trimming.
Detachable Feeder & Trimmer Modules: Cutter unit and vibratory bowl feeder operate together or independently (functions as manual CF-360 when detached).
Optional Optical Component Counter: Digital batch counter available upon request for real-time inventory tracking.
【Universal Bowl Feeder】: Accommodates components with body dia./width < 10mm and height < 18mm (electrolytic caps, LEDs, TO-92). Square bodies (e.g. TO-220) require dedicated tooling.
【Dedicated Single-Profile Bowl Feeder】: Custom-tooled for specific part geometries; requires 200 sample pieces per profile for precision fabrication and qualification.

【Revision Notes】附自動過載保護停機；可選配不同直徑的專用震動送料盤。

Lead Forming & Geometric Parameter Specifications

Unit: mm / Custom tooling available

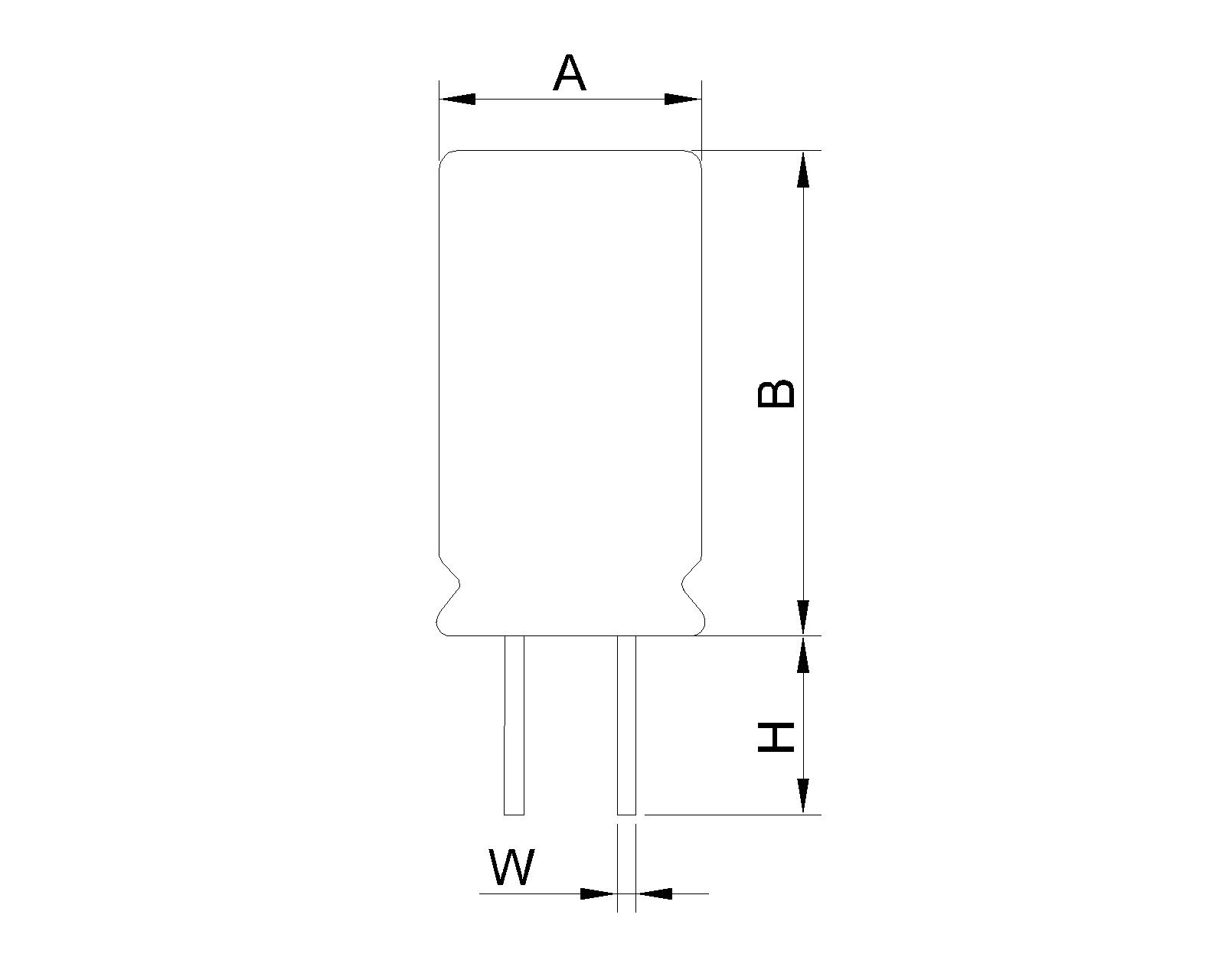

Radial Loose Component Lead Cutting Schematic CF-366

Callouts (A, B, H, W) match specifications in the table

Code	Parameter	Standard Value / Range	Engineering Notes
A	Body Dia. / Width	≦ 10 mm	Small-to-medium electrolytic capacitors, TO-92, LEDs, film capacitors, etc.
B	Body Height	≦ 18 mm	Cylindrical components feed smoothly; rectangular packages like TO-220 require dedicated vibratory bowl
H	Lead Length (H)	3 ~ 20 mm	Lead lengths trimmed to 2.5-3.0 mm require custom guide tracks and cutter blades
W	Wire Diameter (W)	Ø0.4 ~ Ø2.0 mm	Special ultra-wear-resistant tungsten carbide blades for extended tooling lifespan
CAP	Working Capacity	18,000 pcs / Hour	Fully automated vibratory bowl feeder, ideal for high-volume mass production
