XD-2000
Ren Thang Machine
The XD-2000 is a heavy-duty wide-blade automatic material cutting machine with an expanded 200 mm cutting width for broad insulation sheets, wide flat ribbon cables, and protective films. Microcomputer length control and powerful shearing mechanics deliver high-speed, burr-free cutting.
Processing & Feature Tags
加寬幅套管
大口徑熱縮管
排線
薄膜
電纜等卷裝材
Reels
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 送料速度最高 1250 mm/sec
Power / Air Supply 100 ~ 240V AC, 50/60Hz / 馬達 25W
Standard Tolerance 裁切寬度可達 160 mm，最大厚度 13 mm
Dimensions (L×W×H) 460(L) × 290(W) × 290(H) mm
Net Weight 38 kg
Catalog Page & Status

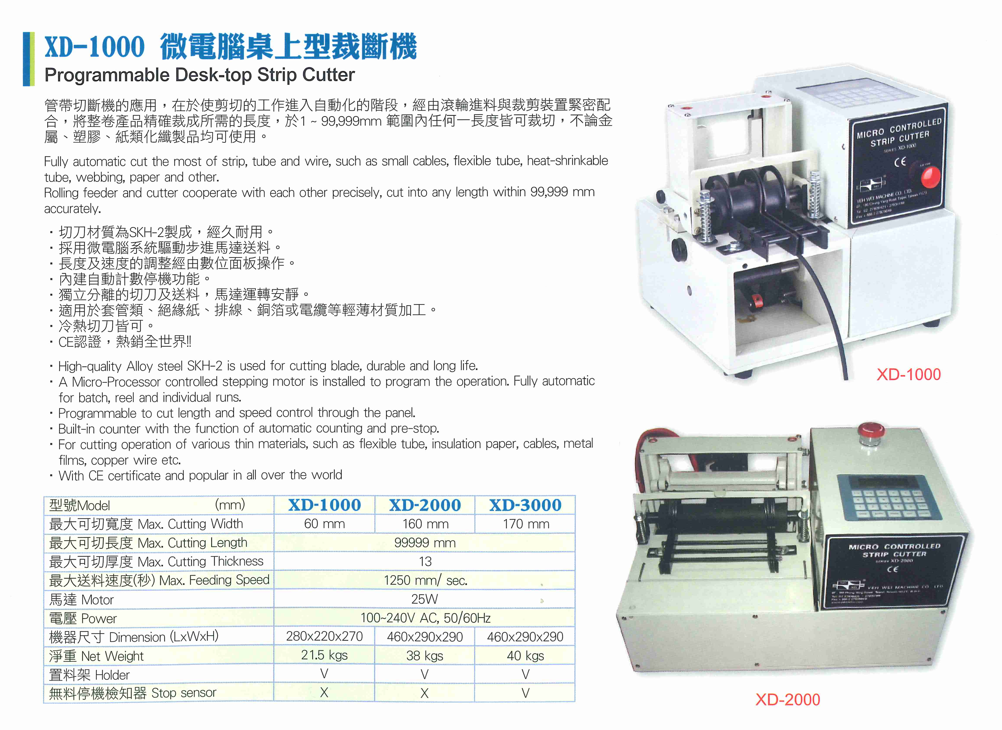

P.23 (Catalog_0023) • 量產中
【Key Machine Features & Advantages】
- Extra-Wide 160mm Cutting Capacity: Extended blade width of 160mm easily accommodates wide flat cables, large heat-shrink tubes, and rolled foils.
- Up to 13mm Cutting Thickness: Handles materials up to 13mm thick, significantly expanding compatibility for thick tubing and heavy insulation jackets.
- Broad 1 to 99,999mm Cutting Length: Freely programmable from 1mm up to nearly 100 meters via digital panel, with feed rates up to 1,250 mm/sec.
- High-Rigidity SKH-2 Blade: Extra-wide SKH-2 premium alloy blade provides exceptional shear resistance, clean cut edges, and prolonged durability.
- Independent Drive Mechanism: Dual-drive system isolates feeding stepper motor from cutting mechanism, providing ample torque and low vibration.
- Intuitive Digital Programming: Microprocessor control panel allows quick adjustments of length, speed, and batch counts; CE certified for international standards.
【Revision Notes】 20260825 型錄規格核實更新：最大裁切寬度 160mm，最大厚度 13mm
Lead Forming & Geometric Parameter Specifications
Unit: mm / Custom tooling available Dimension & Bending Schematic XD-2000
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| W_CUT_MAX | Max. Cutting Width | 160 mm | Widen cutter blade edge, dedicated for wide-width cables and large-size casings |
| L_CUT_RANGE | Max. Cutting Length Range | 1 ~ 99,999 mm | Digital panel can be freely set, and can be cut from 1mm to nearly 100 meters |
| THICK_MAX | Max. Cutting Thickness | 13 mm | Suitable for thick materials, large-diameter sheathed pipes and multi-layer cables |
| SPEED_FEED | Max. Feeding Speed | 1,250 mm/sec | Microcomputer stepper motor with high torque and stable feeding |
| MOTOR_SPEC | Motor Specification | 25W (切刀與送料獨立馬達) | Independent dual-motor design, low noise and small vibration |
| VOLT_RANGE | Power Supply Voltage | 100 ~ 240V AC, 50/60Hz 全電壓 | Global wide-band voltage design |
| BLADE_MAT | Blade Material | SKH-2 特級合金工具鋼 (冷/熱切) | Wide cutter with high rigidity, neat cuts without burrs |
| FEED_HOLDER | Material Reel Holder | 無 (X) | Requires external or horizontal feeding rack |
