RT-720
Ren Thang Machine
RT-720
Tube Component Feeder And Cutter- Two Feeders
自動送多管切腳-雙管 220V/50HZ
The RT-720 is a 220V/50Hz automated multi-tube feeding and unloading unit engineered for continuous cycling of tube-packed electronic components. Equipped with precision optoelectronic sensors and smooth pusher arms, it prevents tube jamming while sustaining continuous automated production.
Processing & Feature Tags
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 3,600 ~ 7,200 pcs/hr (雙管交替進料高速切腳)
Power / Air Supply 220V/50Hz (選配 110V/60Hz), 氣壓 4-6 kg/cm²
Standard Tolerance ±0.3mm
Dimensions (L×W×H) 980(L) × 520(W) × 650(H) mm
Net Weight 45 kg
Catalog Page & Status
型錄修訂 / 網頁素材 • 在產 (Active)
【Key Machine Features & Advantages】
- Continuous Multi-Tube Cycling: Automated magazine feeding significantly cuts manual tube-reloading downtime.
- High-Sensitivity Optical Sensors: Accurately monitors part flow and triggers automatic empty-tube ejection.
- Pneumatic Linked Pusher Mechanism: Gentle, steady pushing prevents tube jamming or pin distortion.
- Wide Tube Package Compatibility: Handles TO-220, TO-247, and diverse box-type power electronic packages.
- Seamless Automation Integration: Easily interfaces with automated handlers, lead formers, and taping machines.
【Revision Notes】 標配雙供料軌道 (Feeder A & B)、缺料聲光警報燈、毫米刻度切刀微調機構。
Lead Forming & Geometric Parameter Specifications

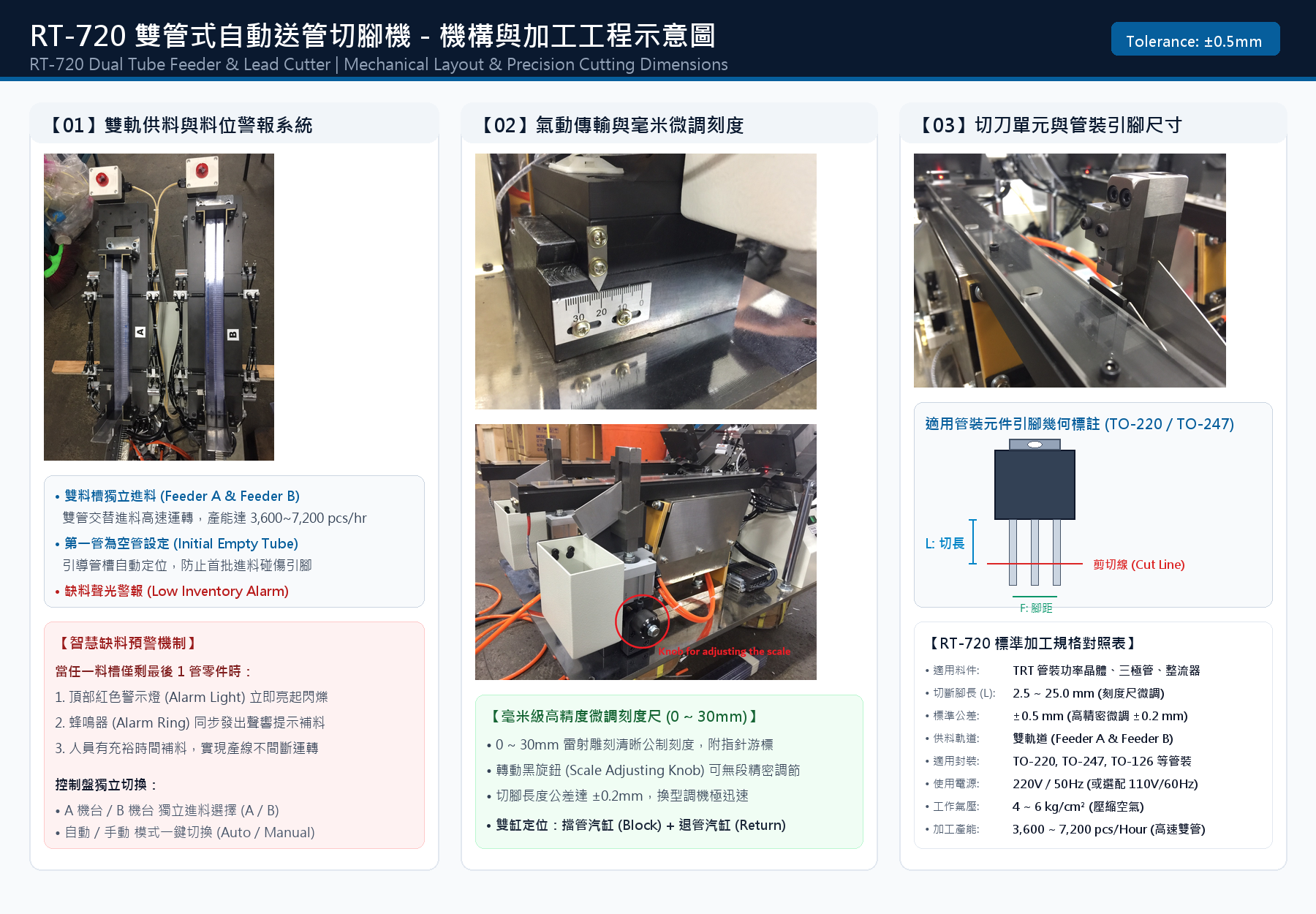

Unit: mm / Custom tooling available Dimension & Bending Schematic RT-720
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| L_CUT | Cut Lead Length (L) | 2.5 ~ 25.0 mm | 0~30mm millimeter scale is precision adjustable |
| FEED_TRACK | Chute Layout | 雙軌道 (Feeder A & B) | Dual-channel alternating/independent feeding |
| ALARM_TRIG | Alarm Trigger | 剩餘 1 管時蜂鳴閃燈 | Real-time audible and visual warning of low material level |
| TUBE_INIT | Initial Tube Setting | 第一管需為空管 (Empty Tube) | Guidance and anti-collision guidance |
| COMPAT_PKG | Component Package | TO-220, TO-247, TO-126 | Tube-mounted (TRT) power components |
