Automatic Thermal Control Solder Pot - Rectangle (SP Series)
方形有鉛/無鉛焊錫爐
The SPXXXX series consists of industrial rectangular solder pots (SP-100 through SP-500) designed for dipping transformer coils, wire harnesses, and large circuit assemblies. Its heavy-duty crucible provides uniform thermal distribution and stable digital temperature control to minimize dross formation.
Processing & Feature Tags
PCB基板浸焊
排線
端子
變壓器浸錫
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 多規格批次手浸焊作業
Power / Air Supply 110V/60Hz, 220V/50Hz (依規格 0.6kW ~ 6.4kW)
Standard Tolerance 溫控精度 ±2°C
Dimensions (L×W×H) 槽體 100×150×70 至 400×600×70 mm (多種尺寸)
Net Weight 熔錫量 6.6 ~ 105.6 kg (機重約 15 ~ 65 kg)
Catalog Page & Status
P.24 (Catalog_0024) • 量產中
【Key Machine Features & Advantages】
- Separated Thermal Control Unit: Control console is fully isolated from the high-temperature pot body, preventing heat damage to electrical components and extending service life.
- S1 Single & S2 Dual Timer Options: Available with S1 standard control or S2 dual control equipped with a 24-hour preset timer for automatic preheating before shifts.
- Full Leaded & Lead-Free Range: Comprehensive sizes including 1015, 1318, 1520, 1825, 2030, 3040, 3047, 3050, 4050, and 4060, all offered in both leaded and lead-free configurations.
- Heavy-Duty Pure Titanium Bath: Lead-free models feature extra-thick pure titanium or premium stainless steel pots, highly resistant to corrosive erosion by lead-free solder alloys.
- Symmetrical Heating Element Array: Multiple high-wattage stainless steel heating elements evenly distributed across the bottom provide rapid ramp-up and uniform thermal profile.
- Cast Iron Rectangular Models Available: Also features KC-1020HS1/S2 (100×200×50mm) and KC-1035HS1/S2 (100×350×50mm) cast iron pots, ideal for transformers and enameled wire tinning.
【Revision Notes】 依 2026.09.11 最新報價單核實更新：含 1015S1/S2 至 4060S1/S2 及銑鐵 1020/1035
Lead Forming & Geometric Parameter Specifications

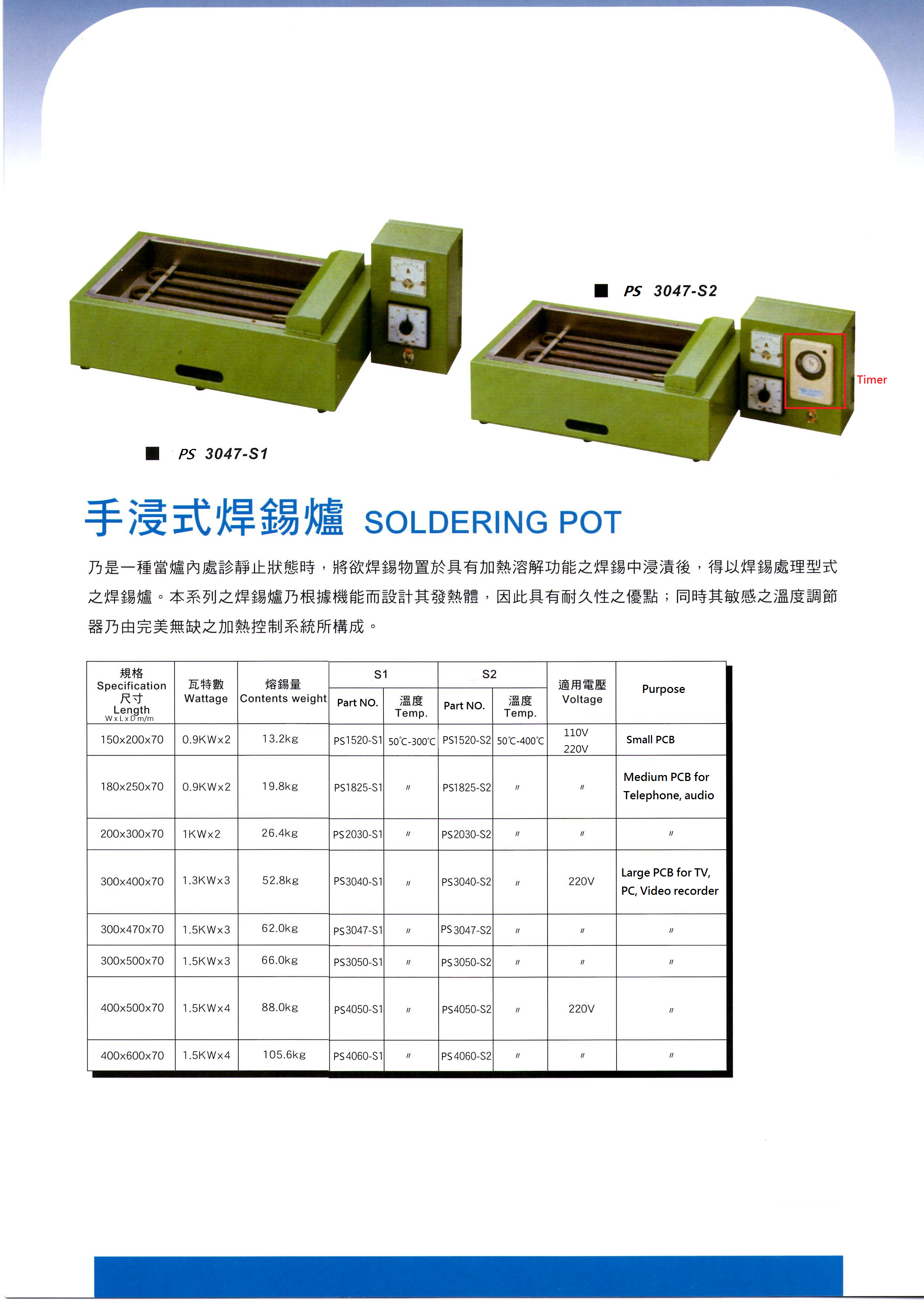

Unit: mm / Custom tooling available Dimension & Bending Schematic SPXXXX
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| CTRL_TYPE | Control Box Configuration | S1: 分離式單控 / S2: 分離式雙控 (附定時器) | The electrical temperature control box is completely separated from the high-temperature tin bath; S2 type is equipped with a 24-hour appointment timer switch |
| MODELS_COMPACT | Compact Models (1015 / 1318 / 1520) | 1015(100×150×70mm), 1318(130×180×70mm), 1520(150×200×70mm) | Power 0.6kW~1.8kW, melting tin volume 6.6kg ~ 13.2kg, suitable for small PCBs and electronic components |
| MODELS_MEDIUM | Medium Models (1825 / 2030 / 3040) | 1825(180×250×70mm), 2030(200×300×70mm), 3040(300×400×70mm) | Power 1.8kW~3.9kW, melting tin volume 19.8kg ~ 52.8kg, suitable for car audio and telephone substrates |
| MODELS_LARGE | Large Models (3047 / 3050 / 4050 / 4060) | 3047(300×470), 3050(300×500), 4050(400×500), 4060(400×600mm) | Depth is 70mm, melting tin volume 62kg ~ 105.6kg, suitable for large motherboards and thick copper plates |
| MODELS_CAST | Cast Iron Rectangular Models | KC-1020HS1/S2 (100×200×50mm), KC-1035HS1/S2 (100×350×50mm) | The amount of molten tin is 7kg / 13kg, high temperature and corrosion resistant milled iron casting, suitable for tin dipping of transformers and enameled wires |
| LEAD_FREE_VER | Leaded / Lead-Free Versions | 全系列均提供【有鉛數位】與【無鉛數位】機種 | The lead-free model uses extra thick pure titanium/high-grade extra thick stainless steel liner, which is acid-resistant and corrosion-resistant and has a long service life |
| TEMP_CONTROL | Temperature Range & Control | 50°C ~ 400°C (銑鐵款達 500°C)，精度 ±2°C | Multiple groups of electric heating tubes are symmetrically distributed, heated evenly and heat up quickly, and the pointer meter monitors the current |
| VOLT_RANGE | Operating Voltage | 110V / 220V 單相，大型款支援 220V 三相 | Special power supply and fuse protection are matched to match the power requirements of different specifications |
