SMT-401
Ren Thang Machine
The SMT-401 is a semi-automatic desktop SMD pick-and-place machine combining a high-resolution CCD optical vision system with a sensitive pneumatic vacuum nozzle. Guided by an ergonomic manipulator arm, operators place fine-pitch chips, SOPs, and QFPs rapidly with fatigue-free accuracy.
Processing & Feature Tags
Tape
(8/12/16mm)
Tube
Bulk
(90種散料)
SMT
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 20 ~ 50 pcs/小時 (打樣樣板與少量多樣)
Power / Air Supply 110V/60Hz ; 220V/50Hz / 氣壓 4 ~ 5 kg/cm²
Standard Tolerance 手動精密微調對位
Dimensions (L×W×H) 800(L) × 720(W) × 300(H) mm
Net Weight 22 kg
Catalog Page & Status

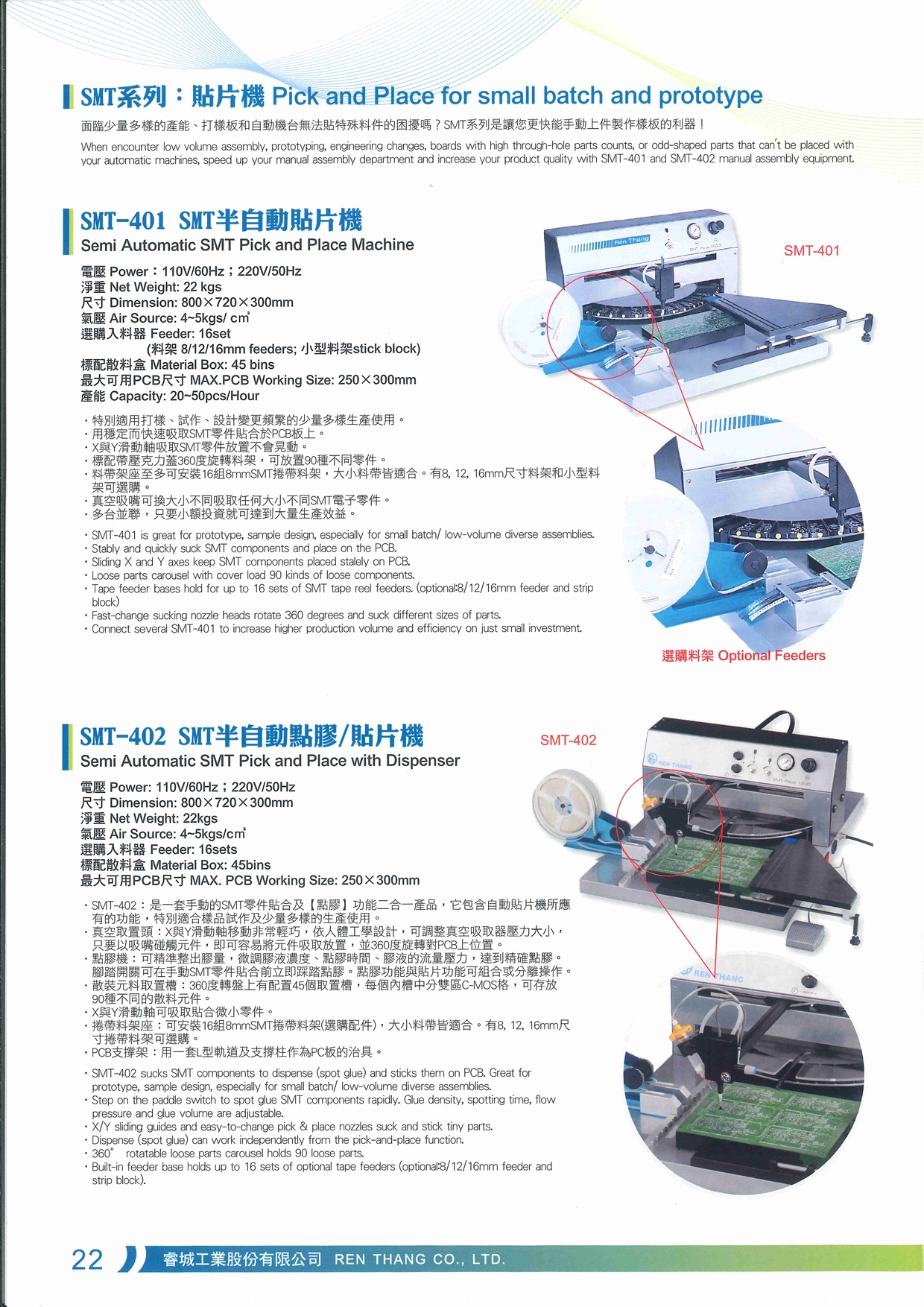

P.22 (Catalog_0022) • 量產中
【Key Machine Features & Advantages】
- Ideal for Prototypes & Small Batches: Specially designed for quick-turn prototype assembly, R&D sampling, and odd-form components incompatible with full-auto pick and place machines.
- Smooth Ergonomic X/Y Linear Rails: Features precision gliding X/Y movement mechanism for stable, vibration-free component picking and placement.
- 360° Rotatable Vacuum Nozzle: Adjustable vacuum suction with interchangeable nozzles of various sizes; 360° continuous manual rotation for fast angle alignment.
- 45-Bin / 90-Part Carousel: Standard 360° covered rotating carousel with 45 dual-compartment C-MOS bins capable of organizing up to 90 loose component types safely.
- Up to 16 Feeder Positions: Base accommodates up to 16 sets of 8mm tape feeders, with options for 12mm/16mm tape feeders and IC stick tube blocks.
- Modular Parallel Expandability: Compact benchtop design (22 kg) allowing multiple units to operate in parallel, significantly increasing batch prototyping output.
【Revision Notes】 20260825 型錄規格核實更新
Lead Forming & Geometric Parameter Specifications
Unit: mm / Custom tooling available Dimension & Bending Schematic SMT-401
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| PCB_MAX | Max. PCB Working Size | 250 × 300 mm | Maximum working substrate size (including PCB fixed clamp) |
| CAROUSEL_BINS | Rotating Material Carousel | 45 格 (共可容納 90 種零件) | Covered and rechargeable 360° rotating material rack, dual-zone C-MOS Slot anti-static storage |
| FEEDER_CAP | Optional Tape Feeders | 16 組 (8 / 12 / 16mm) | The tape rack can be installed with up to 16 sets of reel tape racks, and a small tube loading rack (stick block) is optional |
| CAPACITY_HR | Production Capacity | 20 ~ 50 pcs/hr | Depends on the PCB component density and operator proficiency |
| AIR_SOURCE | Required Air Pressure | 4 ~ 5 kg/cm² | An external air source is required to provide a vacuum generator and nozzle suction force |
| VACUUM_NOZZLE | Vacuum Nozzle Spec | 360° 旋轉對位，可更換吸嘴 | The vacuum suction power is adjustable, and the nozzle can be quickly replaced according to the component size and manually rotated 360 degrees for alignment |
| XY_GUIDE | X/Y Axis Linear Guide | 精密輕順滑軌，吸取放置不晃動 | Ergonomic design, manual guidance is extremely smooth and stable to avoid component deviation |
| MULTI_UNIT | Parallel Multi-Unit Modular | 支援多台並行連線作業 | Multiple units can be arranged in parallel to achieve flexible production efficiency of small to medium quantities |
