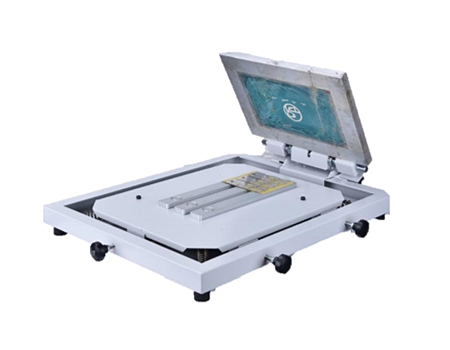

Product No. RT-2100

FEATURES :

• Good for prototype, pilot-run or low production volume.
• Economy and fast solution.
• Compact and easy to use.
• Firm and durable structure.

View PDF File

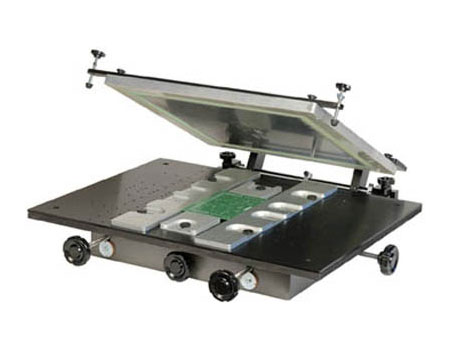

Product No. STP-450

FEATURES :

• Special for SMT stencil and screen printing.
• Available for precision and fine pitch double side printing.
• Quick set and remove function.
• X and Y axial angle adjustable.
• Change different spec board very fast and without tools.
• Double side printing could be finished and changed very fast and precision.

View PDF File

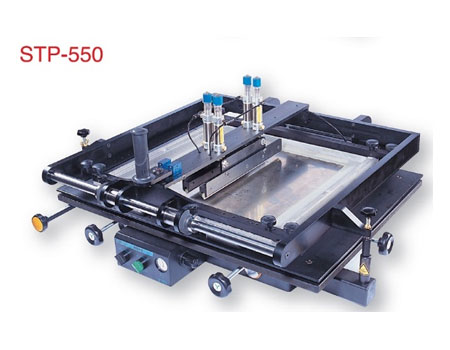

Product No. STP-550

FEATURES :

• Special design printing machine for lead free and new style component.
• When the stencil separate with PC board using vertical lift up function.
• It could keep clean the surface of the PC board.
• Suitable for fine pitch layout printing.
• Flexible double side board fixed base. Adjustable downward pressure valve.
• Button switch operation, automatic control cylinder frame up and down, twin cylinder control metal squeegee.
• Fix the press and angle. Printing direction from left to right. Single or double side PC board printing are available.

View PDF File

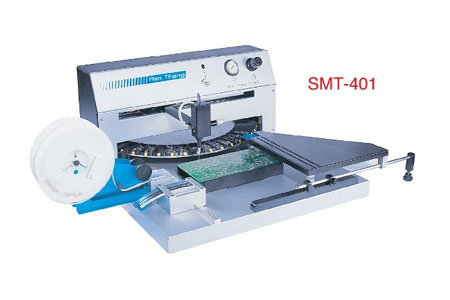

Product No. SMT-401

FEATURES :

• Available for sample design, especially for changeable small quantity multi style production.
• Sucking quickly the SMD components and taping on the PC board.
• Sliding axial X and Y keep the SMT component will not vibration when it is taped on the board.
• Feeder frame could turn around 360 degree, 90 kinds of components could be operated.
• 16 sets SMT tape reel material could be loaded.
• Suitable for any reel size. Vacuum pipe could suck different size SMT component.
• Several machine connected could offer big volume and efficiency production only small investment.

View PDF File

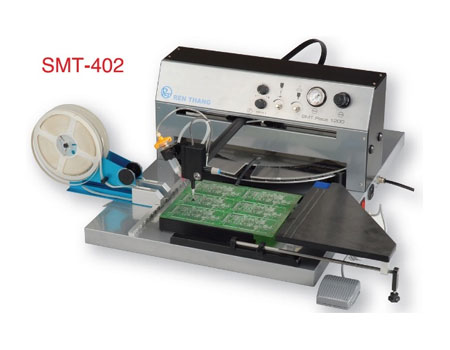

Product No. SMT-402

FEATURES :

• SMT-402 has the function to suck SMT component taping andf spot glue on the PC board.
• Operation with step pad switch to spot glue SMT component repidly.
• The operation function could be spearated or combined sliding axial X and Y.
• Suitable for sucking and taping small size SMT component feeder frame could turn around 360 degree.
• 90 kinds of components could be operated. 16 sets SMT tape reel material could be loaded.
• Suitable for any reel size. Available for sample design, especially for changeable small quantity multi style production.

View PDF File

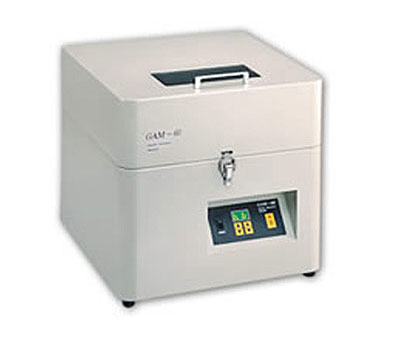

Product No. RAM-60

FEATURES :

• The equipments of the standard production process. Solder mixed uniformed and mixed 2 bottles at same time.
• Informed by light and image when the process is finished. Display by LED and control by micro computer.
• With the time memorized function. Under vacuum condition.
• Finished the solder mixed operation.
• Universal type magazine, available for any brand of solder.
• Touch button, automatically stop when solder mixed process is finished, very easy operation.
• Time control by electronic counter. Set up from 0.1 to 9.5 minutes is available.

View PDF File

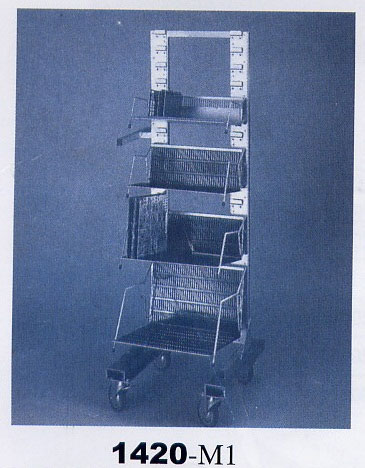

Product No. HC-1420M1

FEATURES :

• Anti-static impedance coefficient: 10 (3~5) ohm/square.
• Formed by PS conductive board.
• Combine usage of PCB shelf cabinet case in order to enhance quality managment.
• Loading volume is huge enough to storage and move in the plant.
• HC-1420M1 is compact to save space.
• QC staff's best partner !
• Many different sizes of Anti-static cases for option.

View PDF File

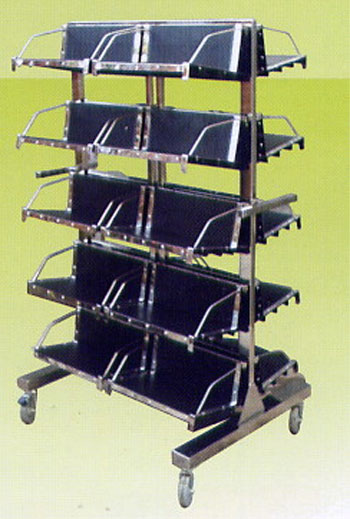

Product No. HC-1420S

FEATURES :

• Anti-static impedance coefficient: 10 (3~5) ohm/square.
• Formed by PS conductive board.
• Combine usage of PCB shelf cabinet case in order to enhance quality managment.
• Loading volume is huge enough to storage and move in the plant.
• HC-1420S is compact to save space.
• AC staff's best partner !
• Many different sizes of Anti-Static Cases for option.

View PDF File

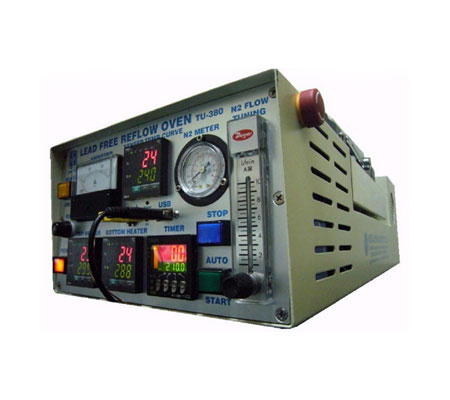

Product No. RTU-380

FEATURES :

• N2 Retrofit : N2 flow rate can control by a N2 Flow Meter, Range from 0-25 M³Min. (1 LPM = 28 Lit/Min), N2 will help to reduce oxidation during reflow process.
• Amp Meter : During power on oven max. surge is 15Amp, and when under normal running condition consume only 6.2 ~ 8 Amp.
• The upper and bottom heating panel are control by separate controller and the temp. Setting can be set individually.
• During power on until ready to use, the oven takes about 25 min.
• Temperature Control Function : (1) It control by two separate controller with Fuzzy Control.
• (2) By using PID Micro Computer Controller, the computer can control for temperature setting and using for measuring temperature profile.
• The Smart Type Temperature Controller can be easily use to monitor the working area temperature, auto run, auto set PID Value and temperature setting.
• Temperature Adjustment +0.5% FS + 1 digit.

View PDF File
