Our Products

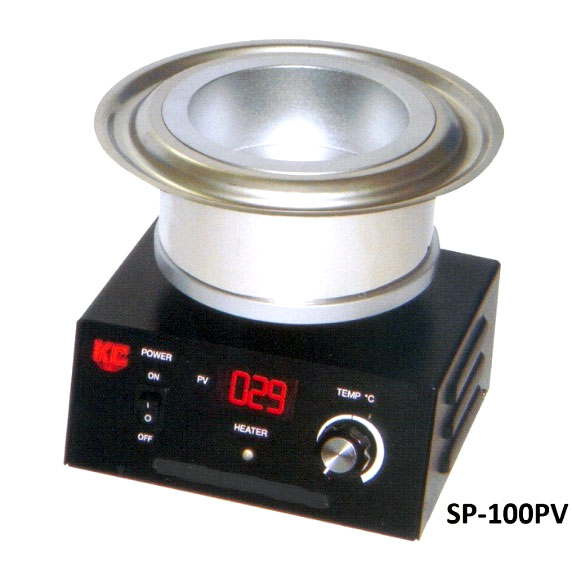

Round Soldering Pot - Termal Control With Display
	Product No. SP-100PV FEATURES : Thermostable and Anticorrosion pot, made by hight-heat-treated cast iron. 3-Digit Display shows the present temperature with I.C. Thermal Control. 2-step thermal control: (H) High and (L) Low temperature. Easy operation and maintenance. Compact size is suitable on wokring table. Fit to small factory or work house. Application: high-temperature wire, electronic component, enameled wire. for samll soldering productivity. View PDF File

Automatic Thermpo Control Soldering Pot
	Product No. SP Series FEATURES : Automatic thermpo control in sepearted design. High quality with efficient performace. View PDF File

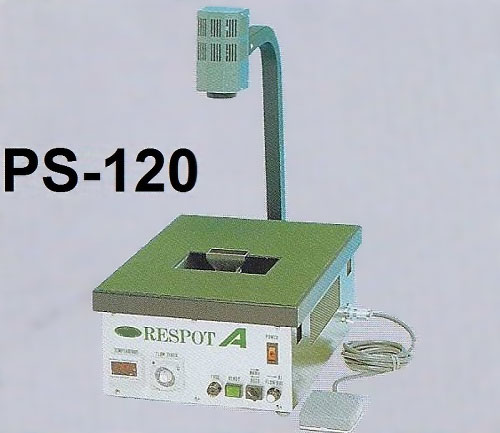

Point Soldering Machine
	Product No. PS-120 FEATURES : This Point-Soldering Machine, made of thick cast iron, is designed especally for high temp. soldering up to 300 Celsius Degrees. It is suitable for soldering transformers, DE soldering for through hole components, connector etc. The flow nozzle can be changed when a partial soldering or removing. There is no need to clean away the dioxides during operation. Special flow nozzles can be made require. PID temperature controller with digital readout. Soldering flow timer with digital display. Available step switch. Changeable wave nozzle. Current leakage protection. View PDF File

This Point-Soldering Machine, made of thick cast iron, is designed especally for high temp. soldering up to 300 Celsius Degrees. It is suitable for soldering transformers, DE soldering for through hole components, connector etc.
The flow nozzle can be changed when a partial soldering or removing. There is no need to clean away the dioxides during operation. Special flow nozzles can be made require.
PID temperature controller with digital readout.
Soldering flow timer with digital display.
Available step switch.
Changeable wave nozzle.
Current leakage protection.

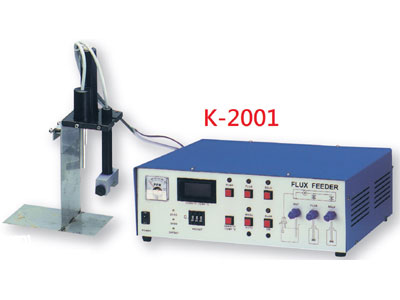

Automatic Flux Density Controller With particle Meter
	Product No. K-2001 FEATURES : Additional function to monitoring the pollution of flux. Automatic re-fill flux or thinner in a ratio-controlling manner. Digital display for flux density and temperature, setting-up by push buttons. Flux lever controlled automatically by supplying the flux or thinner to maintain the setting value of specific gravity. The flux life meter indicates the impurity degree of the flux (Model KA-960). It helps to understand the right time of replacing the flux to ensure product quality. Lift Meter: 0-500 ppm. Range of specific gravity 0.78 - 0.900 View PDF File

Additional function to monitoring the pollution of flux.
Automatic re-fill flux or thinner in a ratio-controlling manner.
Digital display for flux density and temperature, setting-up by push buttons.
Flux lever controlled automatically by supplying the flux or thinner to maintain the setting value of specific gravity.
The flux life meter indicates the impurity degree of the flux (Model KA-960). It helps to understand the right time of replacing the flux to ensure product quality.
Lift Meter: 0-500 ppm.
Range of specific gravity 0.78 - 0.900

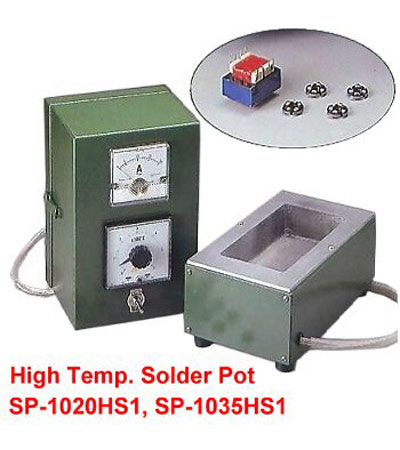

High Temp. Soldering Pot
	Product No. SP-1020HS1 FEATURES : The tank in this type of soldering pot is made of quality cast-iron, and their electric heating tubes are concealed to protect against damage. Application: electric wire, transformer, etc. View PDF File

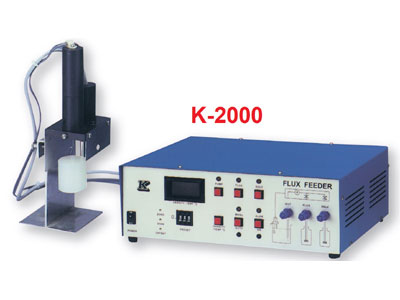

Automatic Flux Density Controller
	Product No. K-2000 FEATURES : Automatically control the flux density in wave soldering machine. Automatic controller that control flux density with ratio control technology. The accuracy can up to +/- 0.002 Best solution for high quality soldering. Range of specific gravity: 0.78 - 0.900 Precision: 0.002 View PDF File

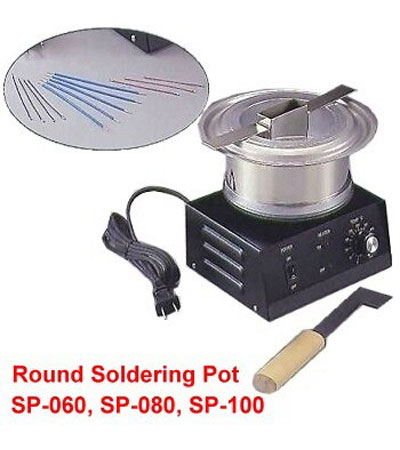

Round Soldering Pot, IC Thermal Control
	Product No. SP-060 FEATURES : The pot is designed for easy movement and installment right after plug in. The automatic I.C. temperature control ensures great safety. Besides, special designs prevent from oxide. Application: Melting wax, welding electronic parts, tin boiler, wires, desoldering parts for through hole PCB, connector and etc. View PDF File

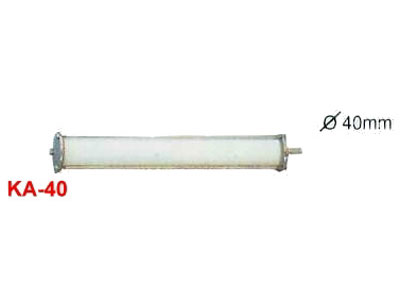

Flux Foaming Element
	Product No. KA-40 FEATURES : The length of foaming tubes are according to user need. Flux Foaming element diameter 40 mm View PDF File

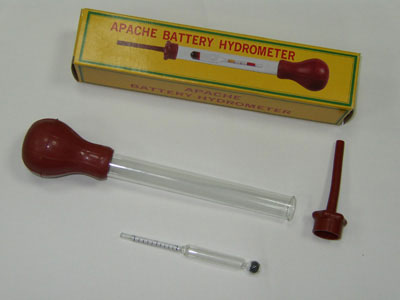

Hydrometer
	Product No. KA-30 FEATURES : Hydrometer measures the Flux Density range: 0.800 ~0.900 View PDF File
